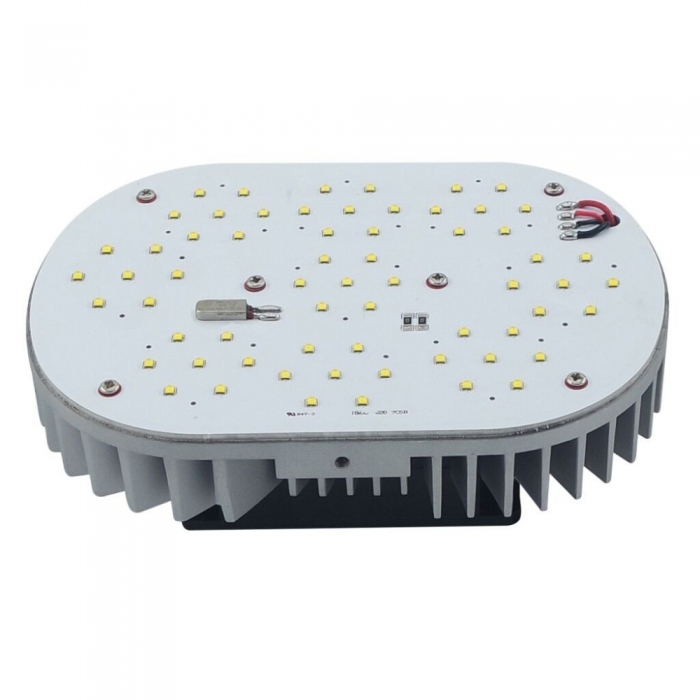

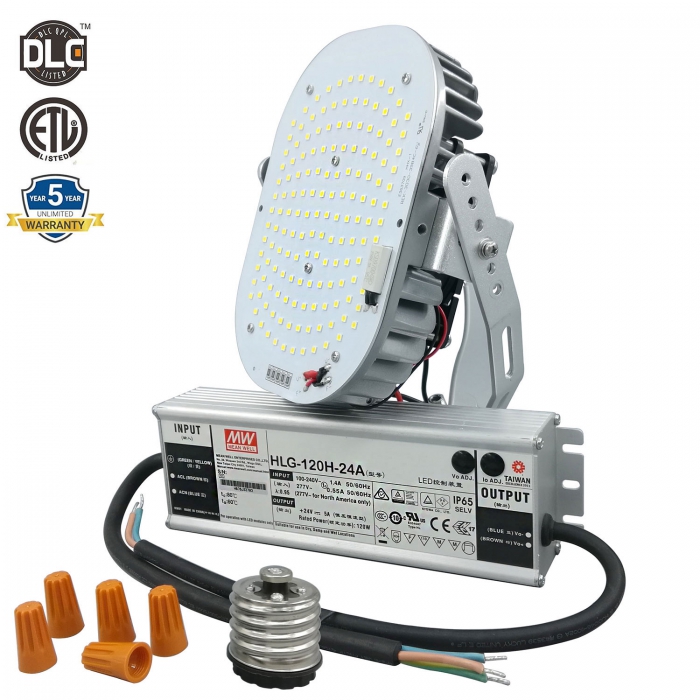

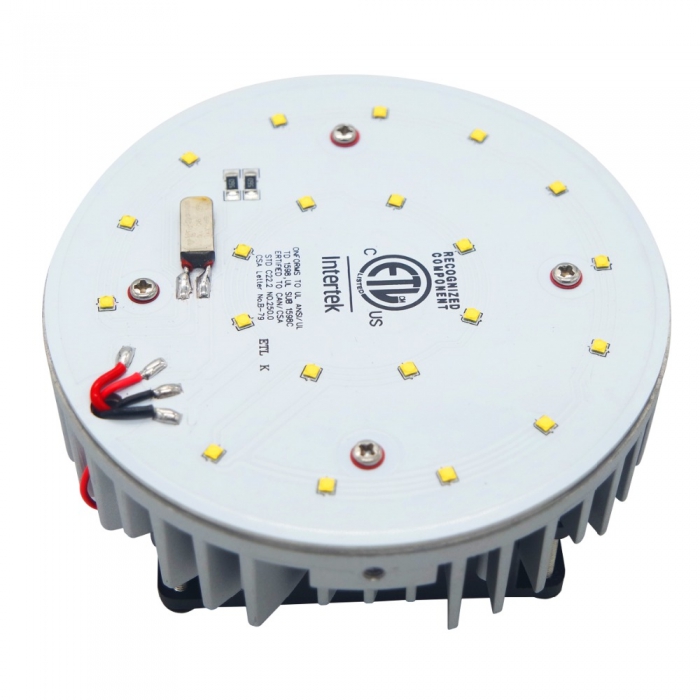

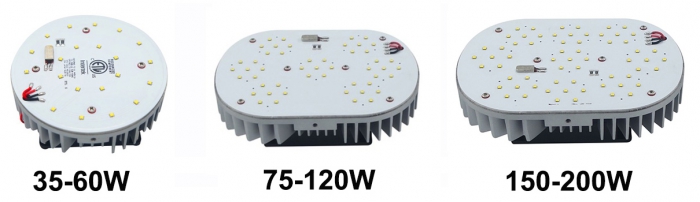

LED Retrofit Kit

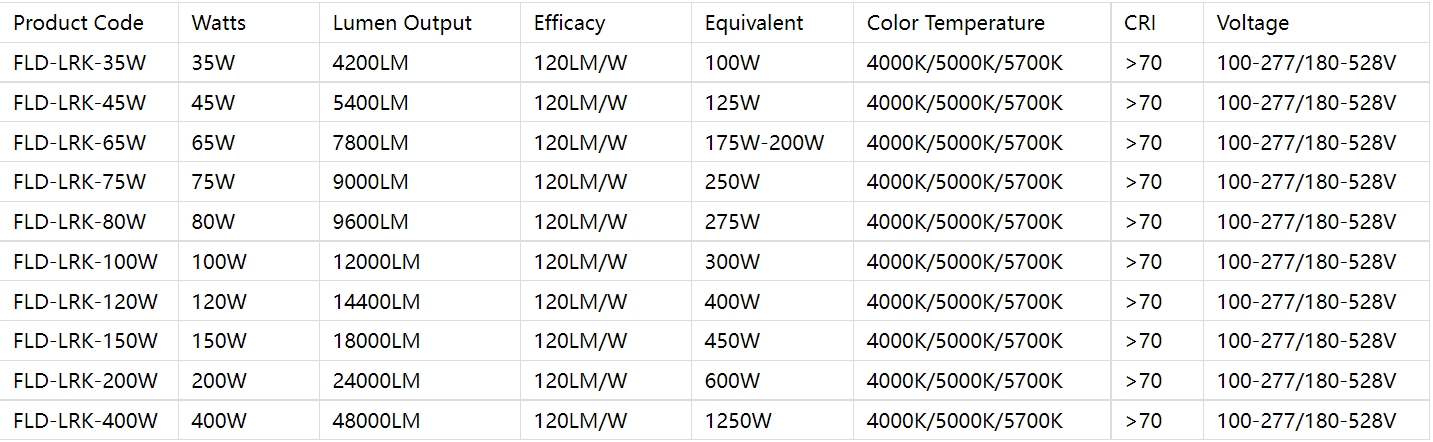

SPECIFICATIONS

BENEFITS

• Improved illumination performance replacement conventional metal halide and halogen lamps.

• Reduce waste by using the existing luminaire.

• Installation plate free to design.

• Eliminate the relamping cycle.


• Meanwell driver assure long life-span.

FEATURES

• Power efficiency more than 95%.

• Efficiency(lm/w): up to 120lm/w.

• CRI: >70


• Color Temperature(CCT):4000K,5000K,5700K.

• Photocell and motion sensor for choose.

• Certification: UL/cUL/DLC listed.

• 0-10V dimming options.


• Working temperature(℉): -30℉-130℉.

• Warranty 5 years,L70 life 70,000 hours.

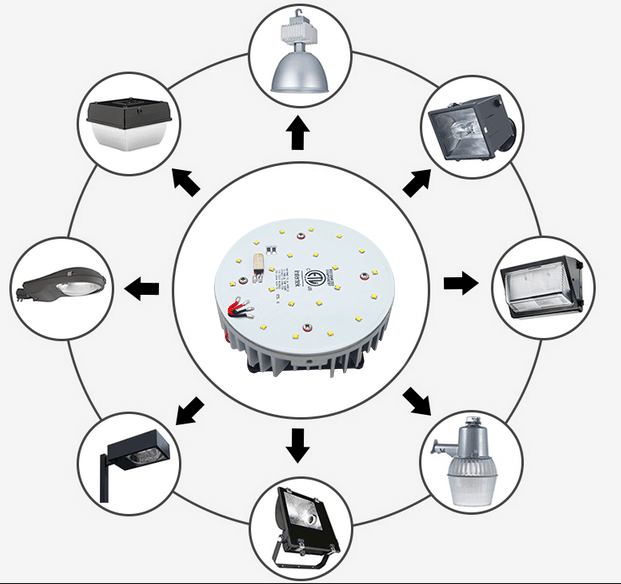

APPLICATION

Led replacement project, Street Light, Bay Light, Flood Light, Are Light, Tunnel Light, Gas Station Light, Shoebox Light, Wall Pack Light.

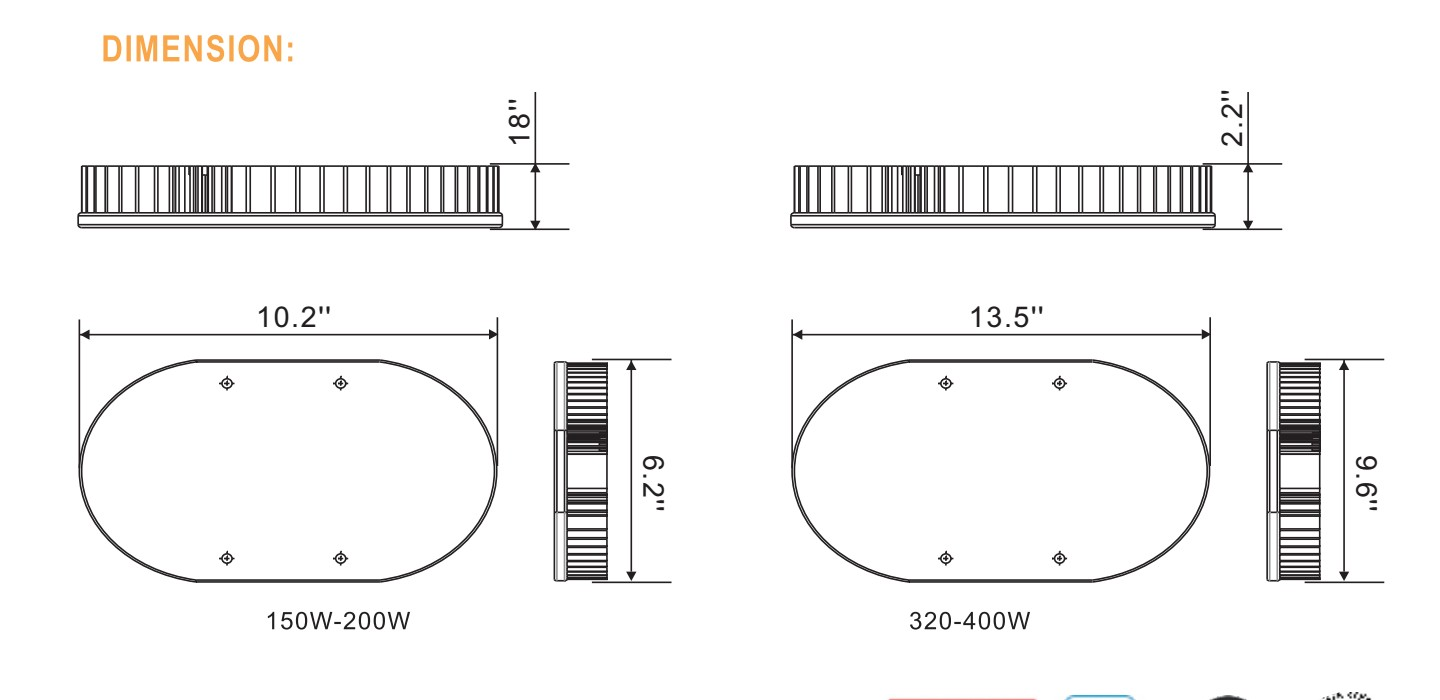

DIMENSION

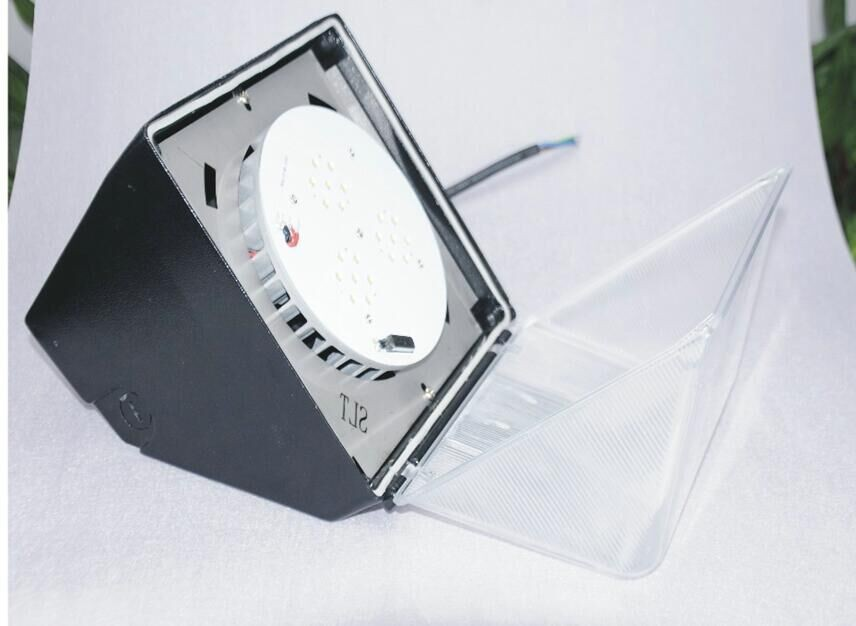

APPLICATION

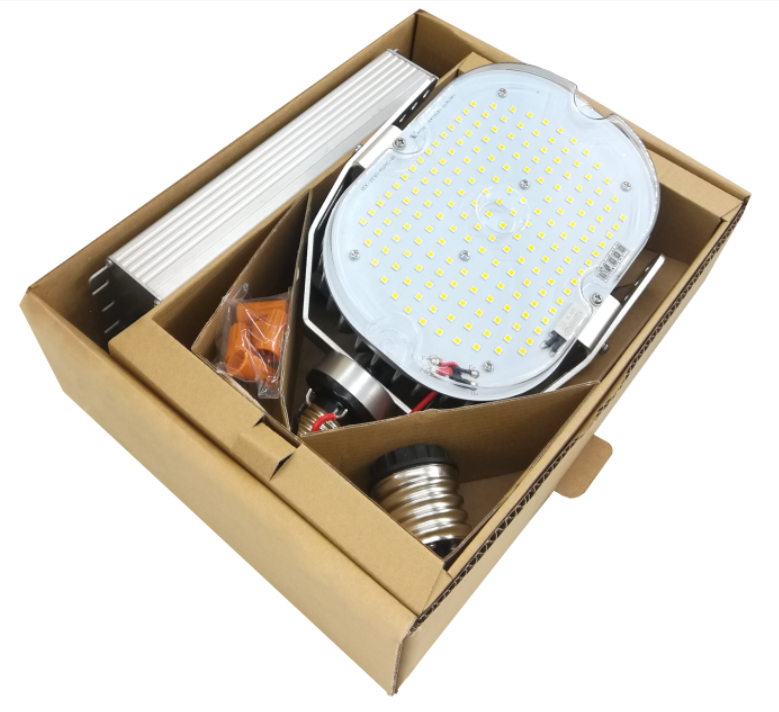

PACKING

46*31*40cm/8pcs                GW.: 20.5Kg/ctn
